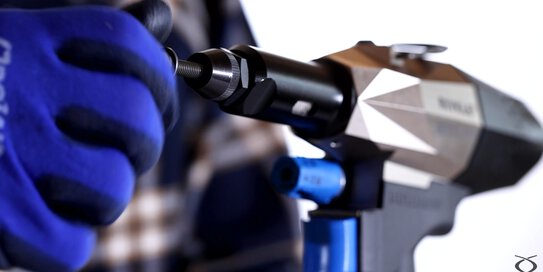

RIVNUT® NEO P107 hydraulic/pneumatic setting tool

The push-pull adjustment bush is unsettled.

Please adjust the push-pull adjustment bush.

Please check the following points:

1) The setting force is too high

Please check if the setting force is correct. We recommend to check it frequently. You can find the right setting force in our RIVNUT® catalogue on page 8.

2) Blind rivet nut tapping or mandrel thread damaged

Please change the mandrel. We recommend to replace the mandrel frequently.

3) Insufficient compressed air pressure

Please check the service pressure.

Please check these points:

1) Insufficient compressed air pressure

Please check the service pressure.

2) Lack of oil in the tool

Please refill the oil by using the filling bottle supplied.

3) Broken pneumatic motor

Please disconnect the compressed air supply, then check the motor by turning the mandrel.

4) The setting force is too high

Please check if the setting force is correct. We recommend to check it frequently. You can find the right setting force in our RIVNUT® catalogue on page 8.

These could be the reasons:

1) Lack of oil in the tool

Please refill the oil by using the filling bottle supplied

2) Insufficient compressed air pressure

Please check the service pressure.

3) The blind rivet nut isn’t compatible with the tool’s maximum stroke

Please check that your RIVNUT® NEO P107 tool is compatible with the choosen blind rivet nut

Please check these four scenarios:

1) Lack of oil in the tool

Please refill the oil by using the filling bottle supplied

2) The setting force is insufficient

Please check if the setting force is correct. We recommend to check it frequently. You can find the right setting force in our RIVNUT® catalogue on page 8.

3) Insufficient compressed air pressure

Please check the service pressure.

4) Application thickness incompatible with the choosen RIVNUT® blind rivet nut

Please check that the thickness of your application is compatible with the choosen blind rivet nut.

Please check these three scenarios:

1) The mandrel thread is worn or damaged

Please change the mandrel. It is important to replace the mandrel frequently.

2) Anvil poorly adjusted

Please check and adjust the position of the anvil

3) The blind rivet nut isn't held in the setting axis during screwing

Please hold the blind rivet nut in the setting axis during screwing. To assist if required, engage the first thread of the blind rivet nut on the mandrel by hand.

These problems can cause:

1) The traction bush is unscrewed, worn and or damaged.

Please check the traction bush, make sure that it's securely screwed against the push-pull adjustment bush and that the o-ring on the push-pull adjustment bush is indeed present and in good condition, and check for any internal wear on the traction bush.

2) Unsettled push-pull adjustment

Please adjust the push-pull adjustment bush.

3) The tool is not powered with compressed air

Please check if the tool is correctly supplied with compressed air
