Quick-release systems

DST quick fastener

The innovative solution for fast, high-strength, friction-locked connections

High-strength fastening without tools

Easy, secure and solid: Snap technology for sheet metal parts, wood and plastic

In a world full of connections, Böllhoff offers a pioneering new technology: The snap technology of the DST fastener. It creates high-strength connections without tools and combines flexibility, convenience, and safety – so that great things can result quickly and safely from your idea.

Plus factors

Advantages DST

Toolless mounting in seconds

Our snap technology products can be quickly mounted without additional tools.
Error-free and reliable

The simple technology ensures faultless connections – even at locations that are difficult to access.
High-strength and friction-locked

The DST quick fastener guarantees high strength and high extraction torques, which are comparable to those of a screw connection.
Withstands shaking, vibration and earthquakes

Our quick fastener fulfils its function even under heavy load: It remains precision-fit, secure and solid.

Method and principle

Snap technology: Based on the principle of a slam latch

Sheet metal, plastic or wood – our DST quick fasteners are offered in different variants. However, all variants have one thing in common: our innovative snap technology. The products function like a slam latch that you see on house doors or room doors. Two individual parts are the basis: the “guide” with angled clamping jaws and a spring seated within the guide. These snap elements are inserted into the guide slot of a body and held in place by a stopper.

Dismantled snap elements lying next to each other. — **The dismantled snap elements of our DST quick fastener**

Assembly and operation

Toolless assembly with just a few simple steps

Press a DST fastener through a suitable opening; the inlet chamfer of the clamping jaws pushes the snap element back into the guide slot, like a latch. The spring is tensioned in this process. As soon as the height of the clamping jaws is exceeded at insertion, the spring forces the snap elements outward and then back into their original position. This produces the typical "snap" sound.

Once the fastener is in the desired position, it holds together the elements to be connected with high strength – even under extreme stress. Many of our products have been successfully tested for vibration and shock (DIN EN 61373) and earthquake resistance (GR63CORE, Issue 4)

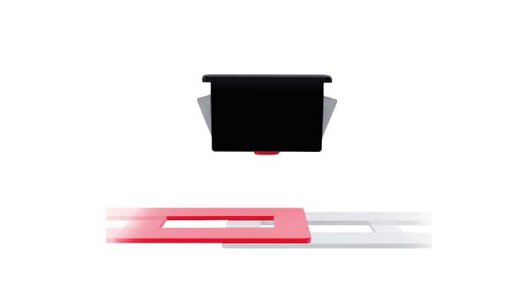

Presentation of the installation process for a DST fastener. — **The clamping jaws of the DST** clamping reliable and permanent

Dismounting

The easiest way to release fastenings

Many of the DST quick fasteners can be dismounted as easily as they are mounted. Different versions are available according to the requirements of the application; they can be easily removed by hand, with standard tools or special tools.

We explicitly recommend dismounting with special tools wherever there is a possibility of vandalism or unauthorized dismounting. Our fasteners are flexible and can be reused at any time.

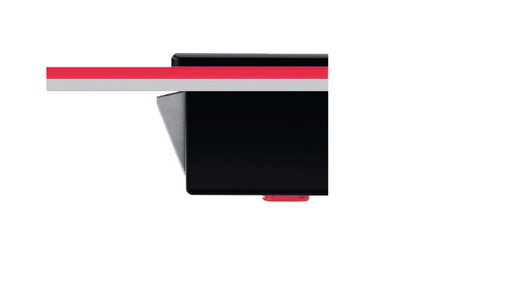

Installation process for a DST fastener. — **Installation Process of SNAP DST** reliable and permanent

SNAPping instead of bolting

Double fasteners

efficiently fasten two sheet metal panels

INTERESTED?

Order DST quick fastener online now

In the eShop, you will find the latest information on price and availability, technical data sheets and CAD downloads, as well as our varied range of branded products and standard parts.

Visit eShop

Find the right solution for your application

DST product types

DST fasteners

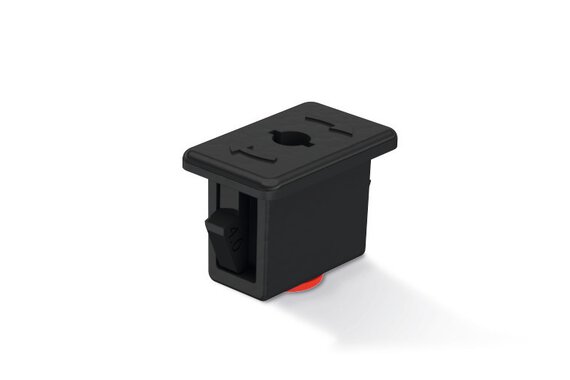

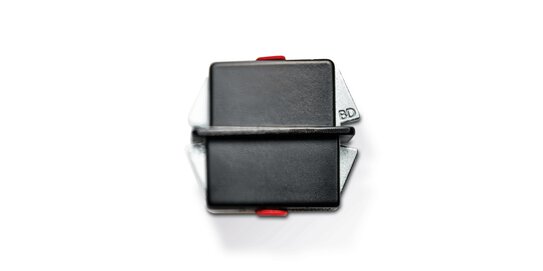

DST fastener 8x15 for sheet metal elements
The fastener with snap technology reliably and permanently fastens sheet metal elements. Simply insert the fastener in the intended installation opening.

Properties

For installation opening 8x15

Toolless mounting

It can also be dismounted from the inside by removing the red plug

With tool 292‑0302.70 from Product System 6080DST, this element can be dismounted both from the inside and the outside (this tool cannot be pulled off in open status).

Materials

Housing: PA, black or light grey RAL 7035

Clip elements: Grivory, black

DST fastener 8x15 in our eShop
DST fastener

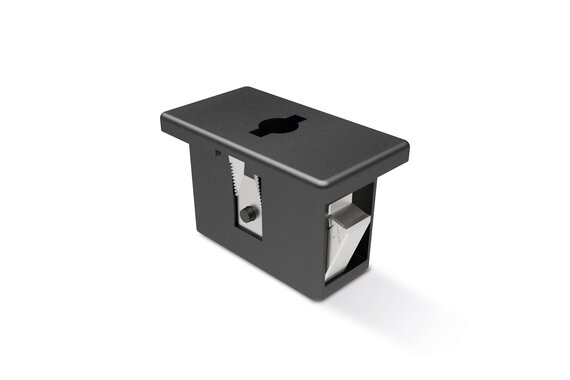

DST fastener 30x14
The quick fastener with snap technology enables high-strength sheet metal fastenings. The riveted earthing spring guarantees an electrical connection between the sheet metal parts to be fastened and to the fastener itself.

Properties

Resistant to shaking and vibration in accordance with DIN EN 61373

The teeth of the earthing spring penetrate even painted cut edges of the installation openings

Dismounting from the front is possible with dismounting tool 2920311.15

Materials

Housing: GdZn, black

Clip elements: sintered steel

Earthing spring: Stainless steel

DST fastener 30x14 in our eShop
DST fasteners

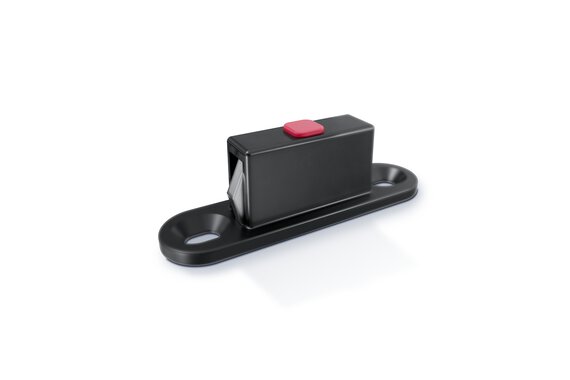

DST fastener 30x10
The DST quick fastener with snap technology is suitable for a single-side permanent connection and a single-side pull-off connection

Properties

Fastened with M4 countersunk screws or wood screws

Clamping range 0.8 to 3 mm

The width (w) of the installation opening can be selected according to need.

Pull-off forces from ~15 to 50 N

Blind mounting in closed profiles

Vibration resistant

Materials

Fastener: GdZn, black

Clip elements: sintered steel

DST fastener 30x10 in our eShop

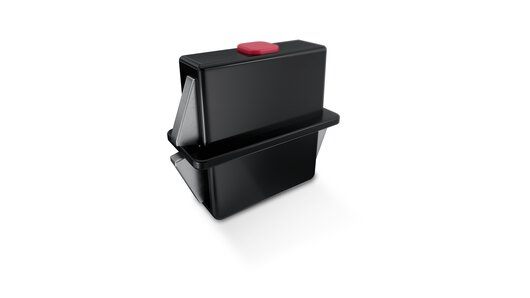

DST double fastener

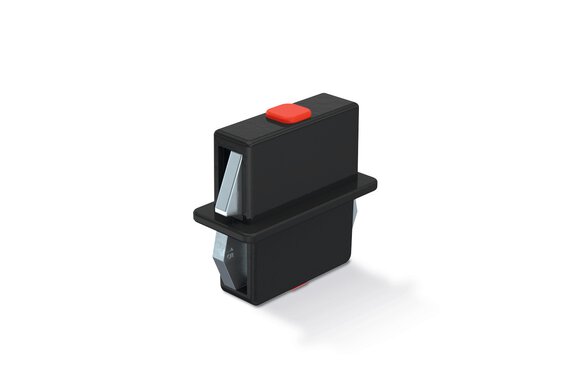

DST double fastener 30x10 for sheet metal panels
Use the double fastener to permanently fasten two sheet metal panels.

Properties

For installation opening 30x10 mm

Toolless mounting

For tolerance compensation, the fastener has a housing length of 28 mm on one side.

Materials

Housing: GdZn, black or PA, black

Clip elements: sintered steel

DST double fastener 30x10 in our eShop
DST double fastener

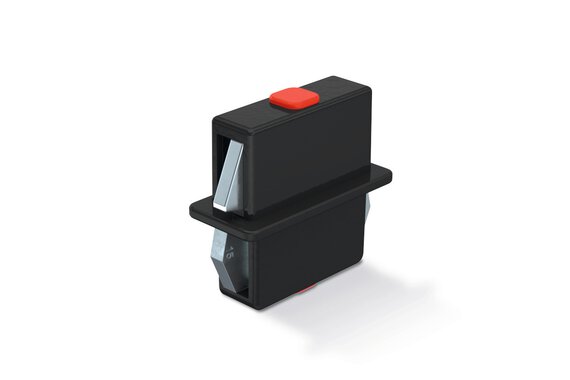

DST double fastener 30x10 for sheet metal panels
The double fastener ensures a single-side permanent and single-side pull-off fastening of two sheet metal panels.

Properties

Toolless mounting

Use for double-wall or non-sealed edged doors and side panels

The double fasteners hold the door in position and prevent "rattling".

Installation opening is 30x10 mm

For pull-off fastening an installation opening of 28x10 mm to 30x16 mm can be selected

Materials

Double fastener: PA, black or GdZn

Clip elements: sintered steel

DST double fastener 30x10 in our eShop
DST fasteners

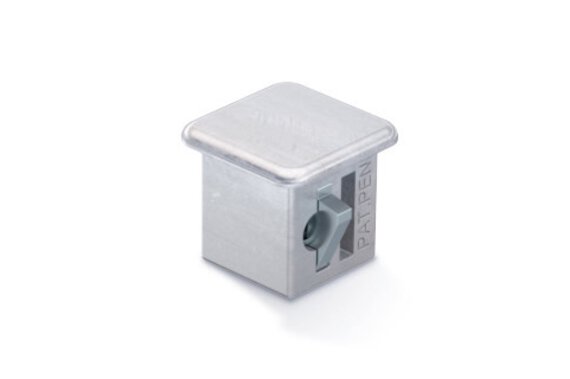

DST fastener 9.7 for sheet metal elements
Use quick fastener 9.7 for high-strength fastening of sheet metal elements. Simply clip our product into the intended installation opening.

Materials

Housing: GdZn, blank

Clip elements: sintered steel, galvanized

DST fastener 9.7 in our eShop

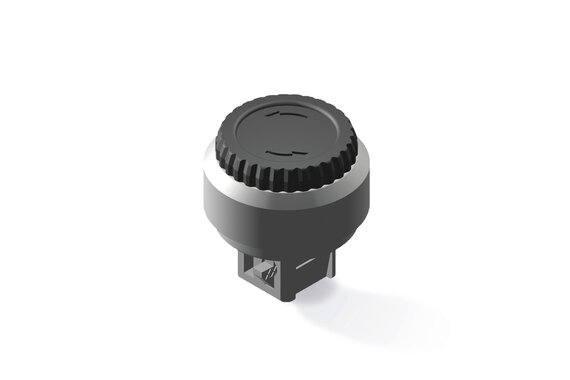

Captive flex fastener

DST captive flex fastener 9.5
The captive flex fastener with snap technology efficiently fastens sheet metal elements and securely latches doors and covers.

Properties

Meets the requirements stipulated in 2006/42 EC

Cannot be lost, fall off or misplaced

Guarantees a secure seat in the installation opening

Vibration-resistant in accordance with DIN EN 61373

Handwheel actuation

Open with a ¼ turn of the actuation element

Self-adjusting clamping range from
0.5 to 5.5 mm

Single-piece

Materials

Housing and disc: GdZn, chrome-plated

Handwheel: PA6, black

Springs: Spring steel

Clip elements: sintered steel, galvanized

DST captive flex fastener 9.5 in our eShop
Captive flex fastener

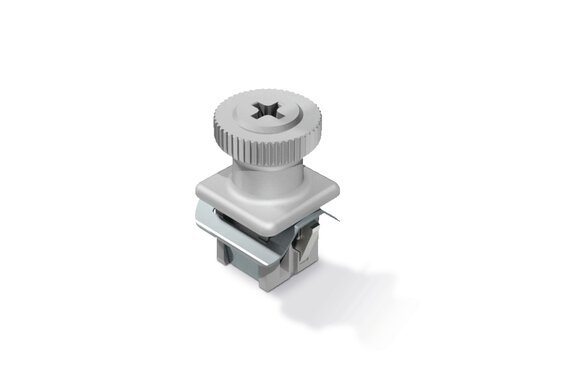

DST captive flex fastener 9.5
The captive flex fastener 9.5 with snap technology fastens sheet metal elements and latches doors and covers.

Properties

Meets the requirements stipulated in 2006/42 EC

Cannot be lost, fall-off or be misplaced

Guarantees secure seat in the installation opening

Resistant to shaking and vibration in accordance with DIN EN 61373

Handwheel actuation, Phillips H2 or Torx 15

Open with a ¼ turn of the actuation element

Single-piece

Materials

Housing: GdZn, chrome-plated or black

Actuation element: Anodized aluminium

Springs: Spring steel

Clip elements: sintered steel, galvanized

DST captive flex fastener 9.5 in our eShop
DST fasteners

DST quick fastener 9.5 for sheet metal elements
The DST fastener 9.5 from Böllhoff fastens sheet metal elements with the new snap technology. Fasten by simply clipping in by hand into the installation openings intended for this purpose.

Properties

Use a flat-head screwdriver (size max. 7x1 mm, min. 6x1 mm) to dismount the fastener from the front.

Single-piece

Materials

Housing: GdZn, blank

Clip elements: sintered steel

Leaf spring: stainless steel

DST quick fastener 9.5 in our eShop
DST captive fastener

DST captive quick fastener 9.5
The captive quick fastener 9.5 with snap technology is suitable for fastening sheet metal elements and latching doors and covers.

Properties

Meets the requirements stipulated in 2006/42/EC

Cannot be lost, fall-off or be misplaced

Guarantees secure seat in the installation opening

Resistant to shaking and vibration in accordance with DIN EN 61373

Phillips H2 actuation

Open with a ¼ turn of the actuation element

Single-piece

Materials

Housing: GdZn, blank

Clip elements: sintered steel

Actuation: Aluminium, hardened

Springs: Spring steel

DST captive quick fastener 9.5 in our eShop
DST captive fastener

DST captive quick fastener 12.7
The captive flex fastener 12.7 fastens sheet metal elements and latches doors and covers.

Properties

Meets the requirements stipulated in 2006/42/EC

Cannot be lost, fall-off or be misplaced

Guarantees a secure seat in the installation opening

Resistant to shaking and vibration in accordance with DIN EN 61373

Hand wheel actuation, Phillips H2

Open with a ¼ turn of the actuation element

Single-piece

Materials

Housing: GdZn, blank

Clip elements: sintered steel

Actuation: Aluminium, hardened

Springs: Spring steel

DST captive quick fastener 12.7 in our eShop
